Products >> Flat Flex Wire Belt

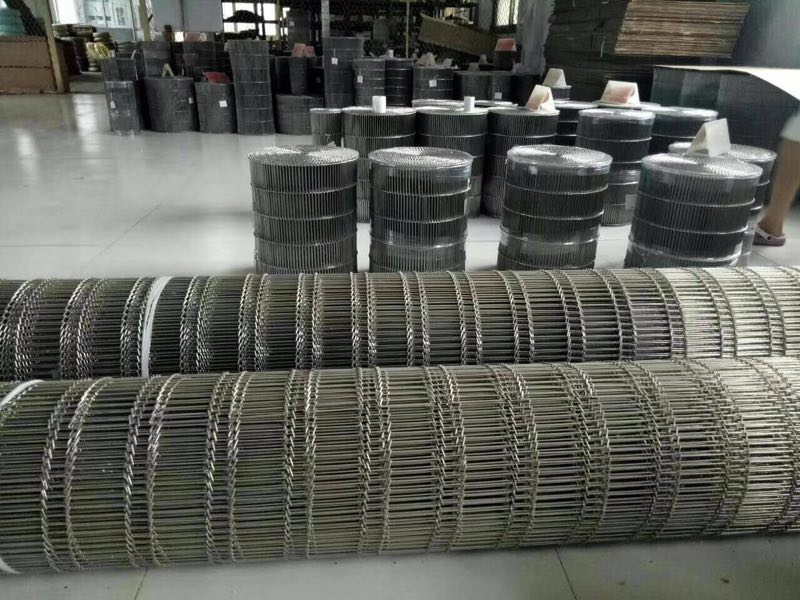

Flat flex wire conveyor belt is also named ladder belt and enrober wire belt,it is woven mesh belt with light weight and large opening that widely used for food processing including chocolate enrober,breading,cooling,baking,coating and frying.The material is food grade stainless steel 304 and 316,we use the high strength hard wire weave the enrober belt to make sure the high quality.
The flat-flex wire belt is driven by sprockets and rollers,we can make stainless steel sprockets and nylon sprockets based on the different applications,straight run conveyor belt is most common,90 degree and 180 degree flat-flex wire mesh conveyor belting are for curve conveyors.
How to joining a flat-flex wire conveyor belt and enrober ladder belt?
We can send the videos to teach how to joining a enrober ladder belt,also can provide joining tubes and clips.

Specifications:
Material: SUS304,SUS316
Wire thickness: 1mm,1.2mm,1.4mm,1.5mm,1.57mm,1.8mm,2.0mm,2.34mm,2.5mm,2.8mm
Pitch: 4.3mm,4.5mm,5..0mm,5.5mm,6.0mm,6.5mm,7.26mm,9mm,10.1mm,12.7mm
Width: 150mm,200mm,300mm,400mm,500mm,600mm,610mm,650mm,700mm,710mm,900mm,1000mm,1050mm,1200mm,1500mm,2000mm
Edges: single loop edge(SLE),double loop edge(DLE),Safety edge and roller chain edge.
